Key Features

• Flanged bushing with a seating flange for axial positioning and load transfer in John Deere equipment assemblies.
• Tubular insert designed to limit bore size, provide a wear surface, or guide motion within a housing.
• Length options from just over 9.53 mm up to 609.6 mm to fit a range of openings.
• Part number M80084; engineered for straightforward replacement in maintenance cycles.

Product Details

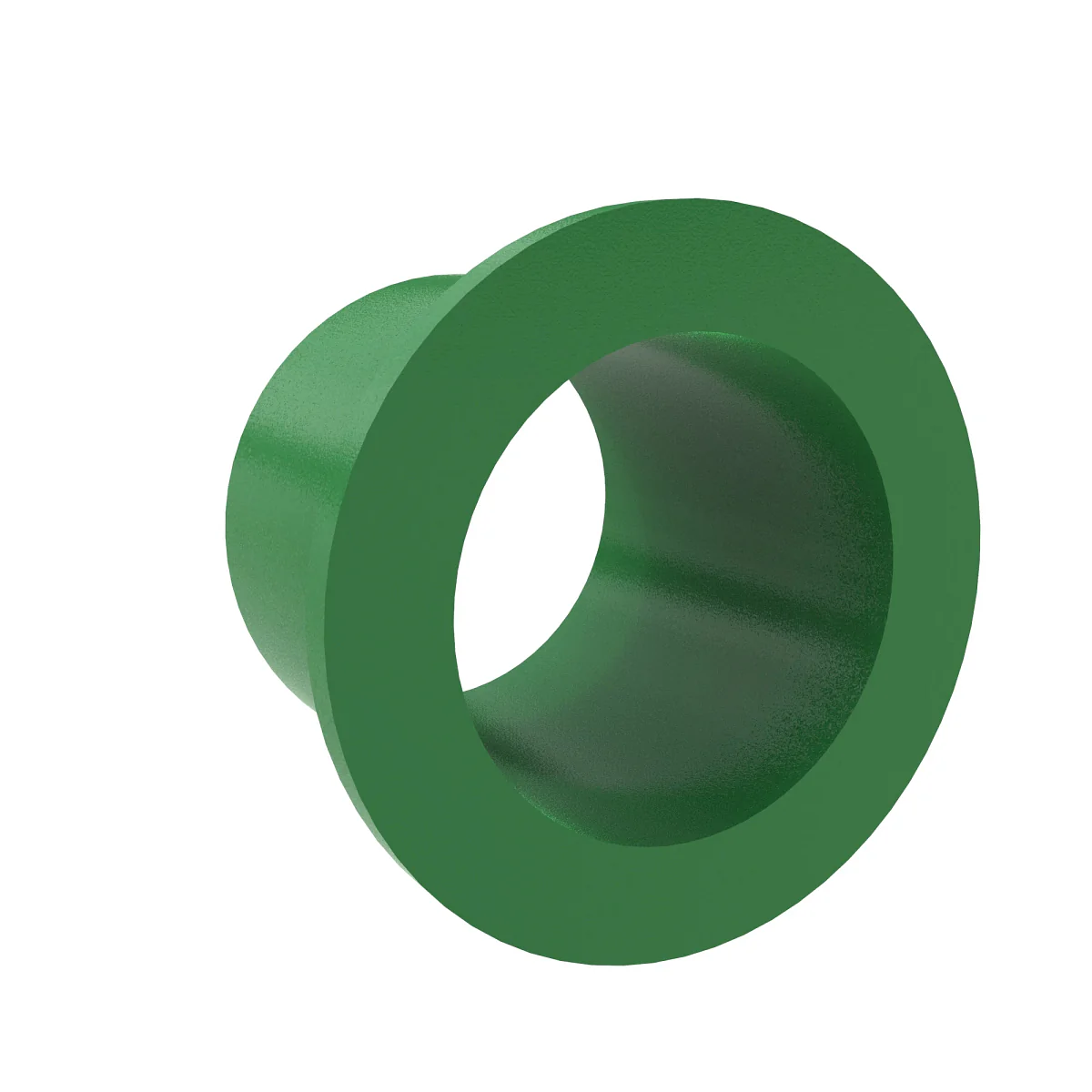

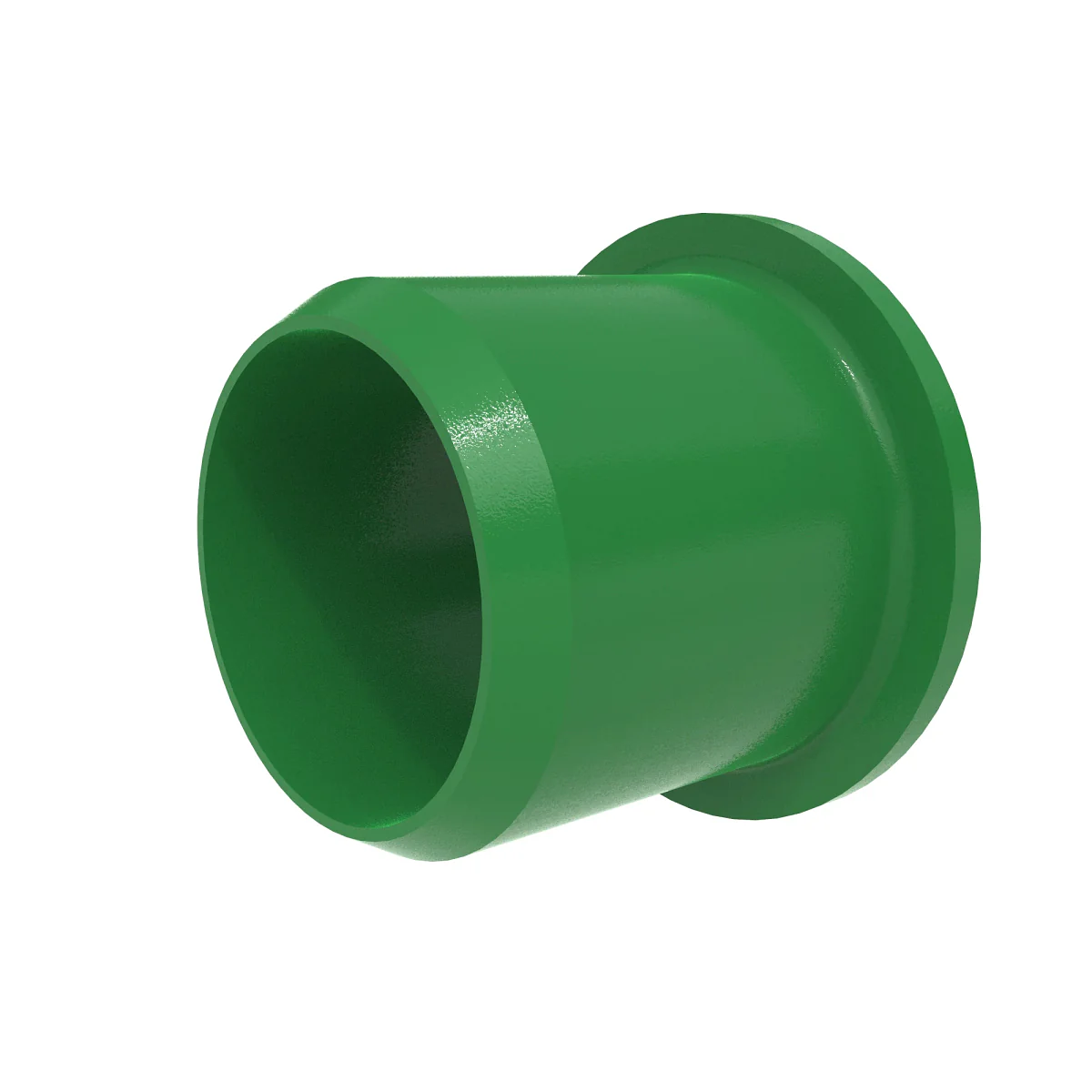

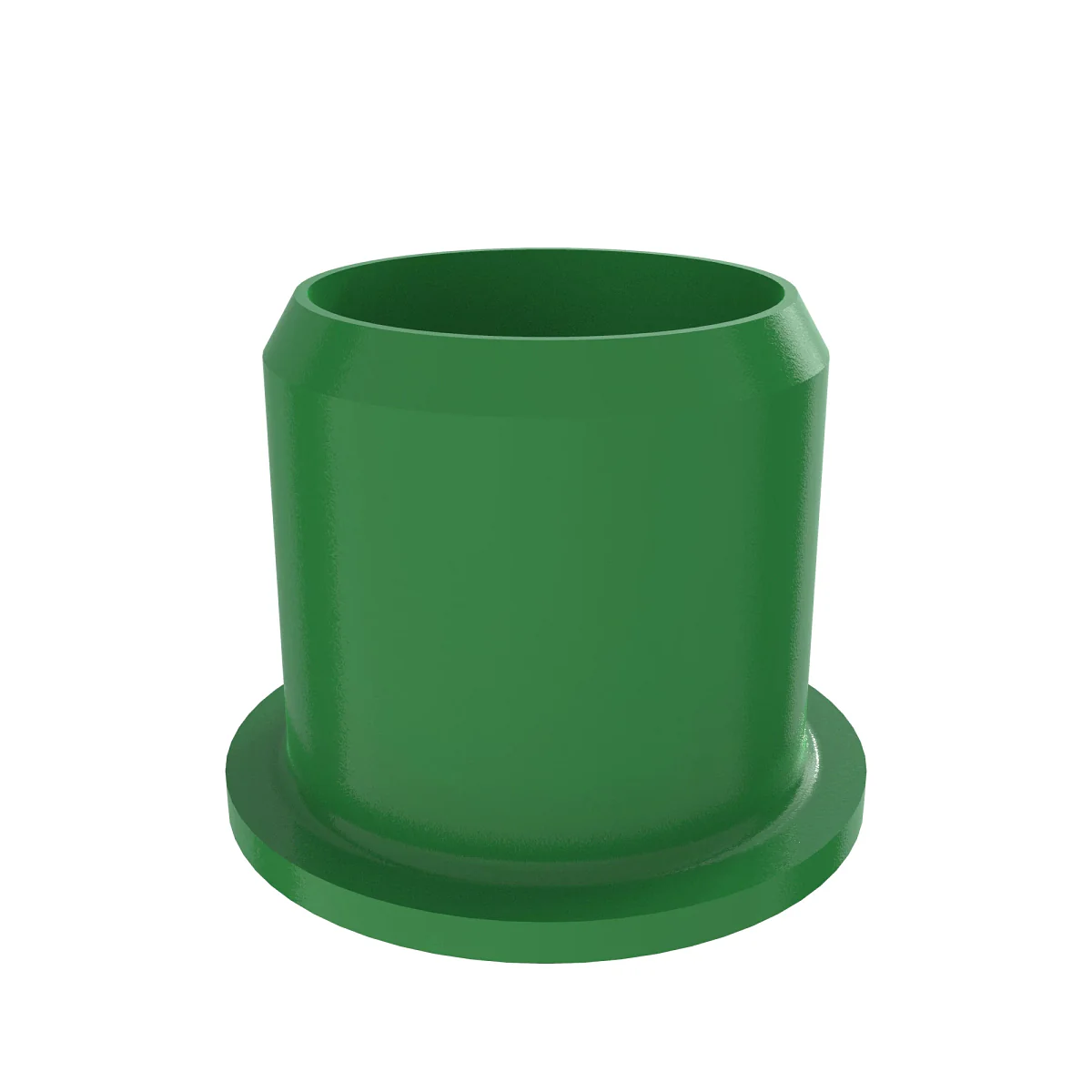

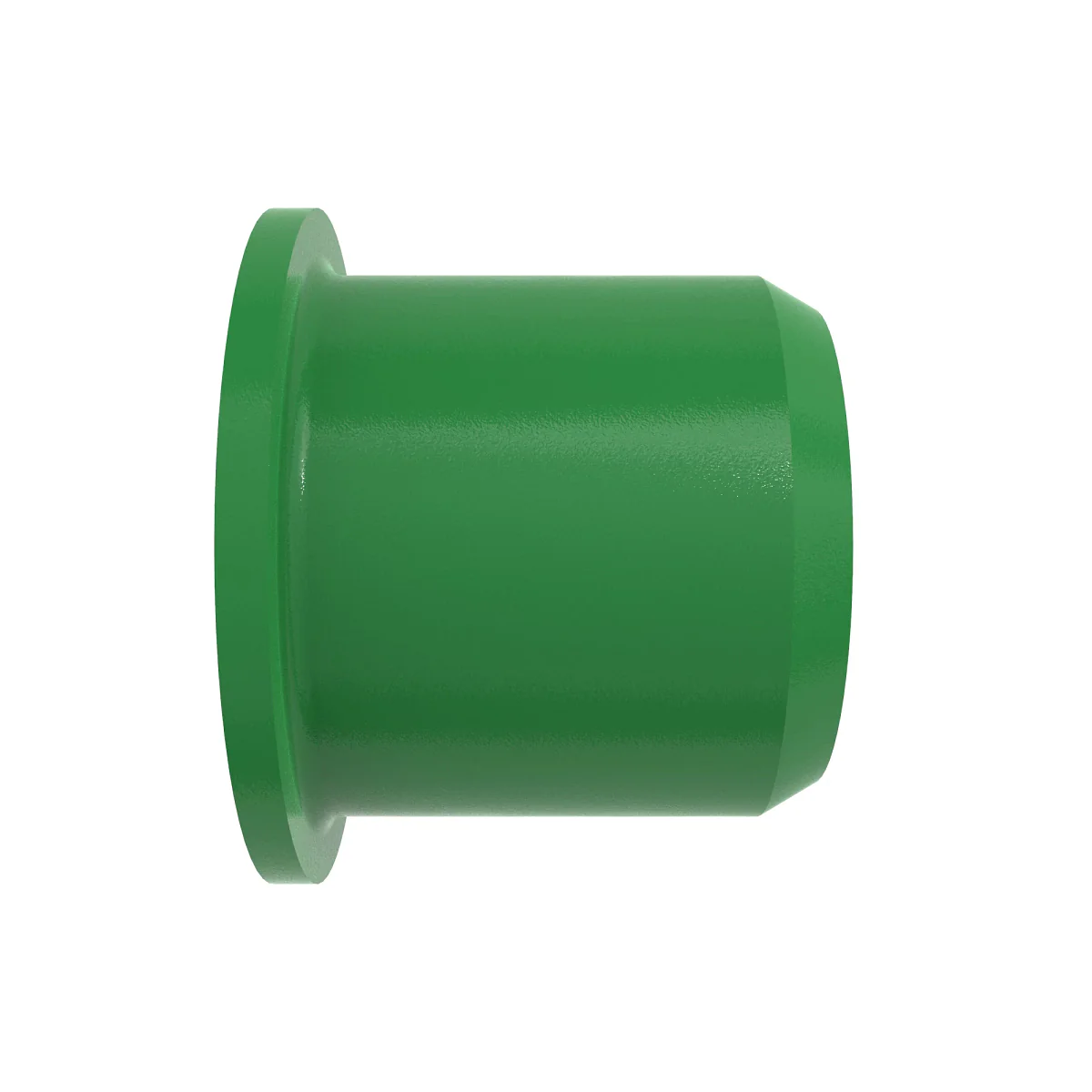

• Product: John Deere Flanged Bushing
• Model/Part: M80084
• Function: constrain movement, resist wear, and guide shaft or pin in housings
• Shape: generally tubular with an integral flange
• Length range: >9.53 mm and ≤609.6 mm

Compatibility

• Intended for John Deere equipment assemblies requiring a flanged bushing within the specified length range
• Verify bore compatibility, flange fit, and mounting hole pattern with the housing and shaft/pin to be used
• Suitable for pivot points, linkages, and sliding joints where a replaceable wear surface is beneficial
