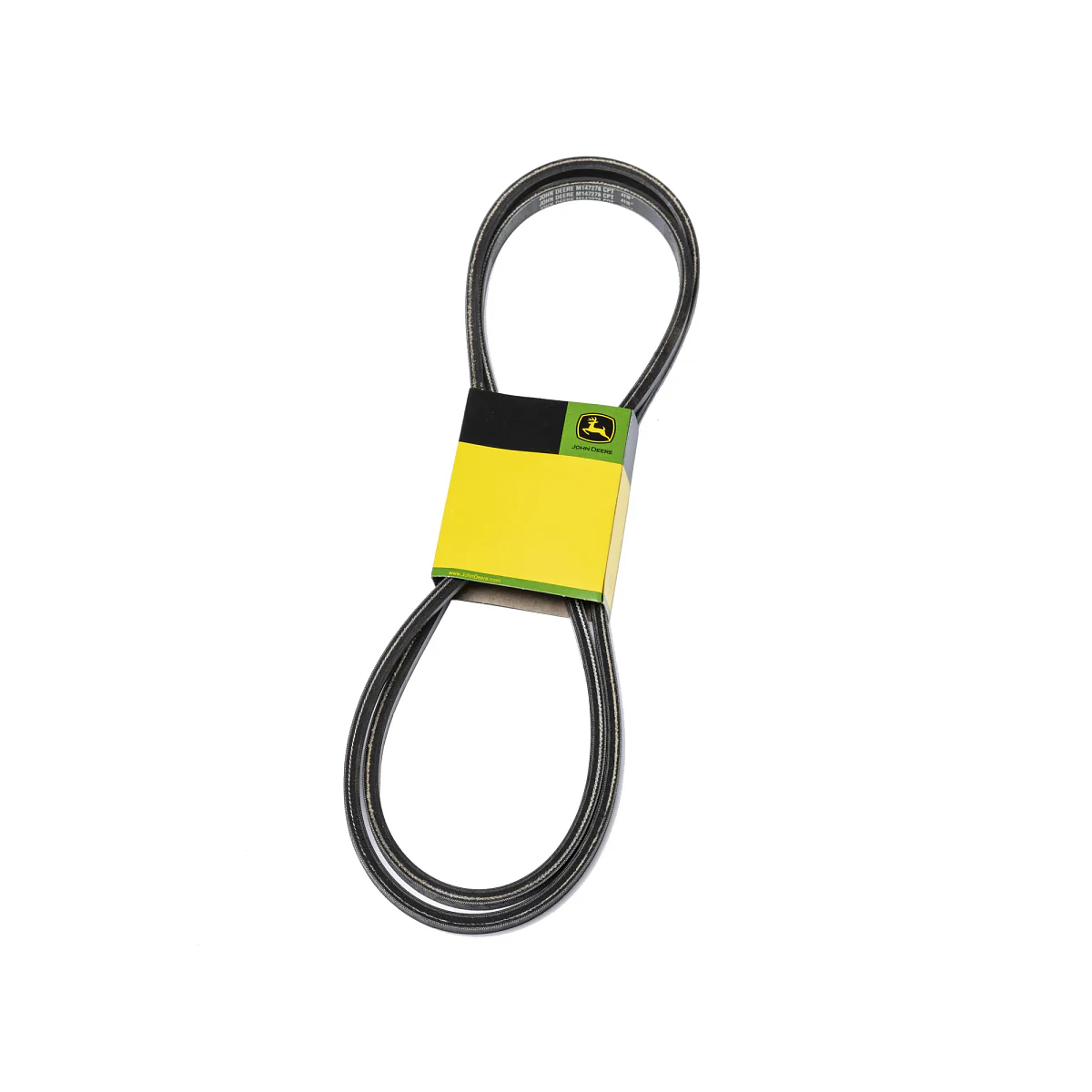

Key Features

• HA Section V-Belt with trapezoidal cross-section designed for secure engagement in standard V-groove pulleys.
• Endless belt construction eliminates joints, ensuring uniform tension along the belt length and reducing failure risk.
• Reliable power transmission for smooth, predictable operation under typical agricultural drive loads.
• Robust construction built to withstand demanding operating conditions and extended service life.
• Precise dimensions support accurate fitment: effective length 2292 mm (90.2 in), width 12.7 mm, thickness 7.87 mm.

Product Details

• Effective Length: 2292 mm (90.2 in)
• Width: 12.7 mm
• Thickness: 7.87 mm
• Cross-section: HA Section V-Belt (trapezoidal)
• Type: John Deere V-Belt
• Model/Part: M147278
• Related belt references: 0614-05 (Round Belt), 0614-06 (Blat Belt), 0614-08 (Synchronous Belt)
• Notes: Aims to minimize material loss and maintain operational productivity through reliable drive performance.

Compatibility

• Designed for John Deere equipment that requires an HA-section V-belt with an effective length of 2292 mm.
• Intended for pulleys with standard V-groove profiles compatible with trapezoidal cross-sections.
• Ensure correct drive layout, proper belt tension, and alignment for optimal performance.
• For other belt geometries, refer to related types: 0614-05 (Round Belt), 0614-06 (Blat Belt), 0614-08 (Synchronous Belt).
