Key Features

• Hexagonal head with an integrated flange for even load distribution and reduced wear on mating surfaces.
• Externally threaded bolt designed for through-hole assembly; the head is designed to remain stationary during tightening, with tightening and release accomplished via a nut.
• Nominal diameter of 3/8 inch (9.525 mm) and overall length of 1-1/4 inch (31.75 mm).
• Standard 3/8-16 UNC thread for compatibility with widely used nuts and threaded holes.
• Part number M143695 associated with John Deere equipment and compatible assemblies requiring 3/8-16 flange bolts.

Product Details

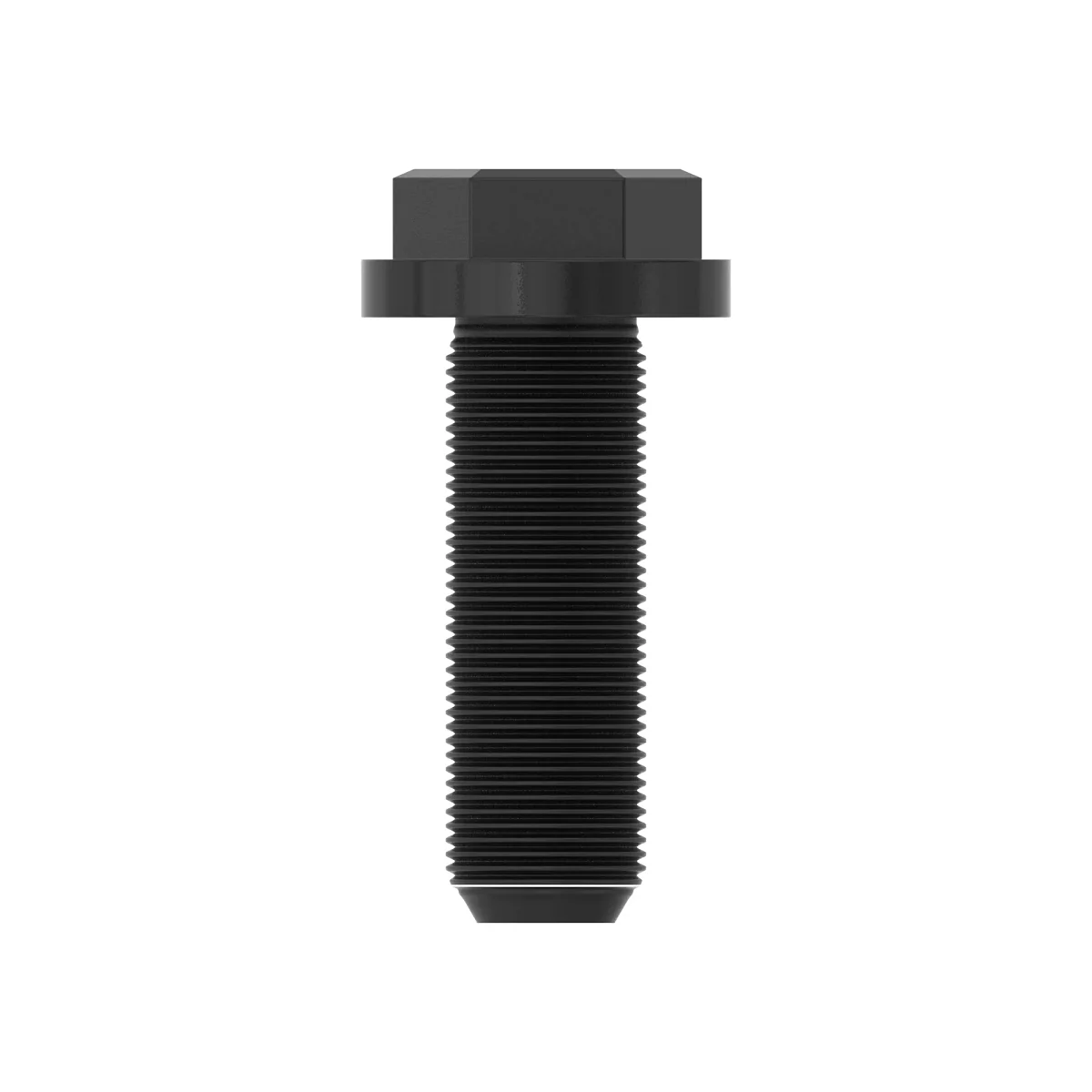

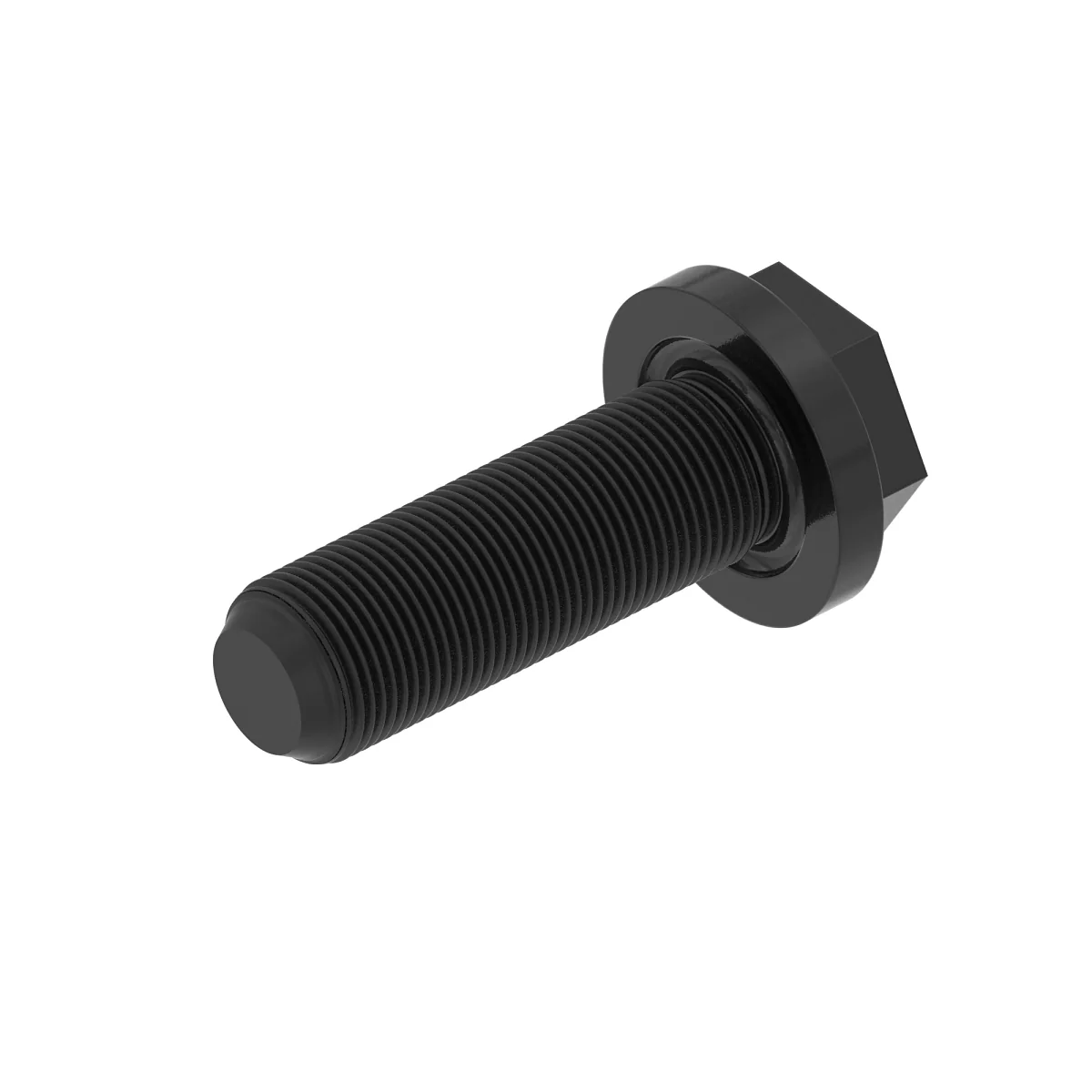

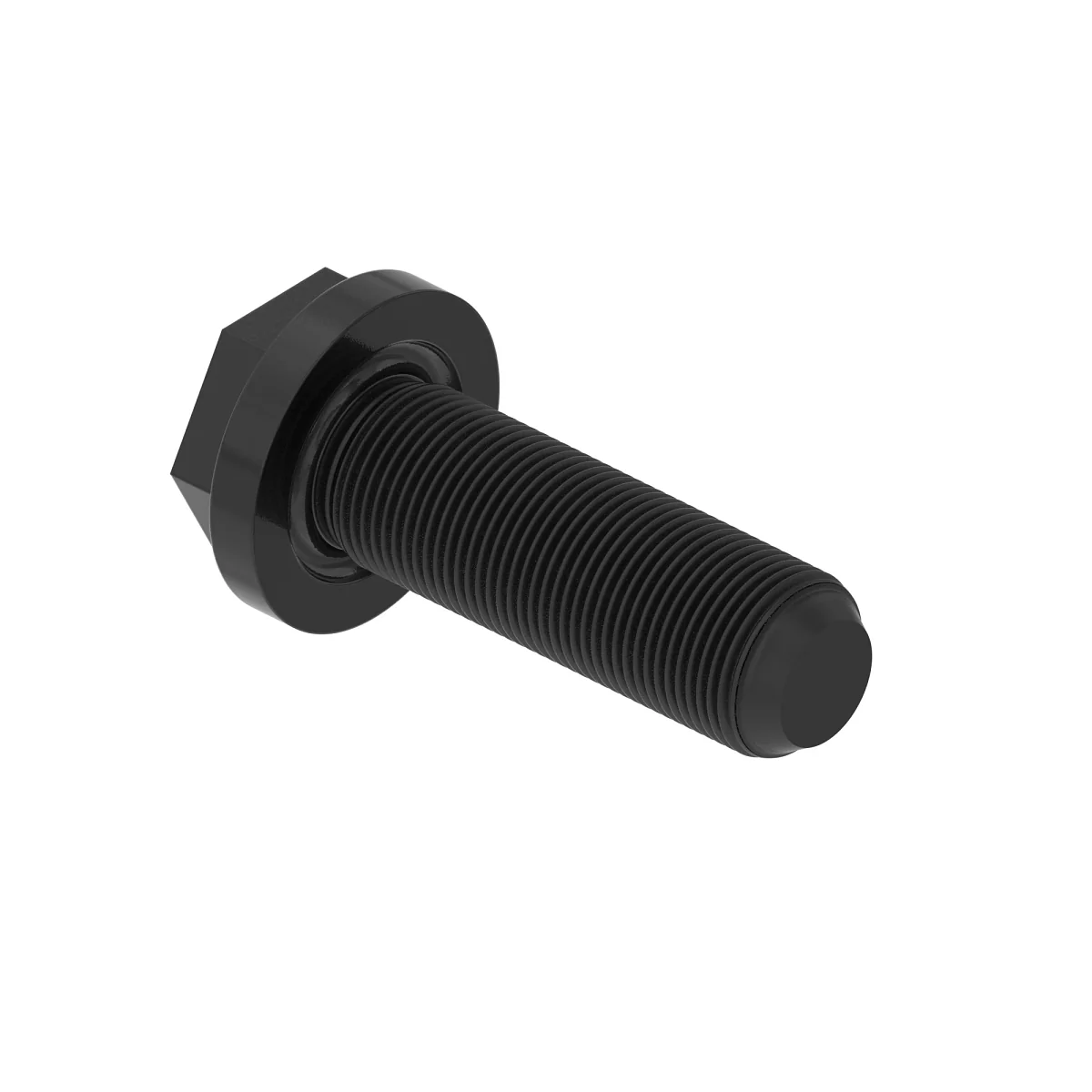

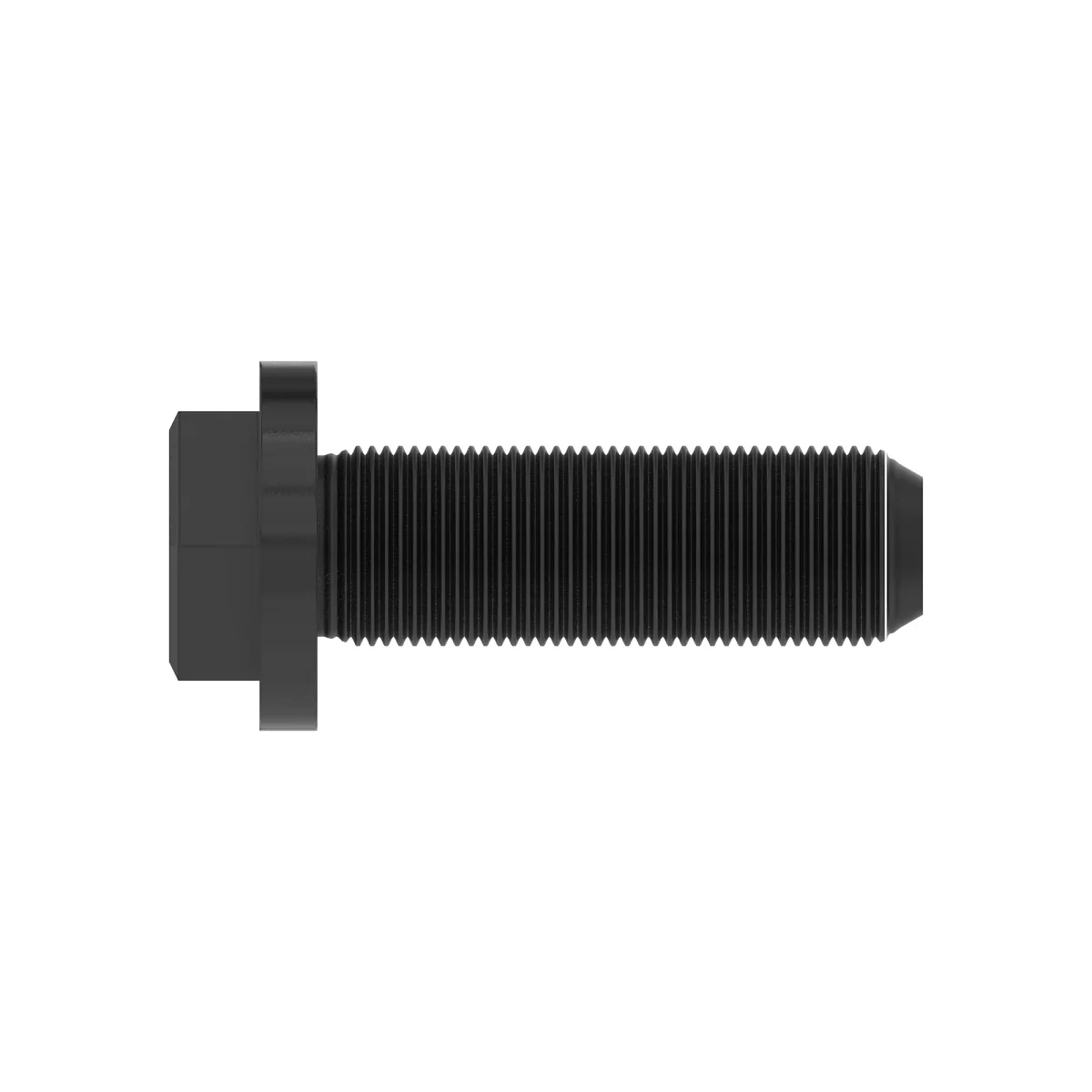

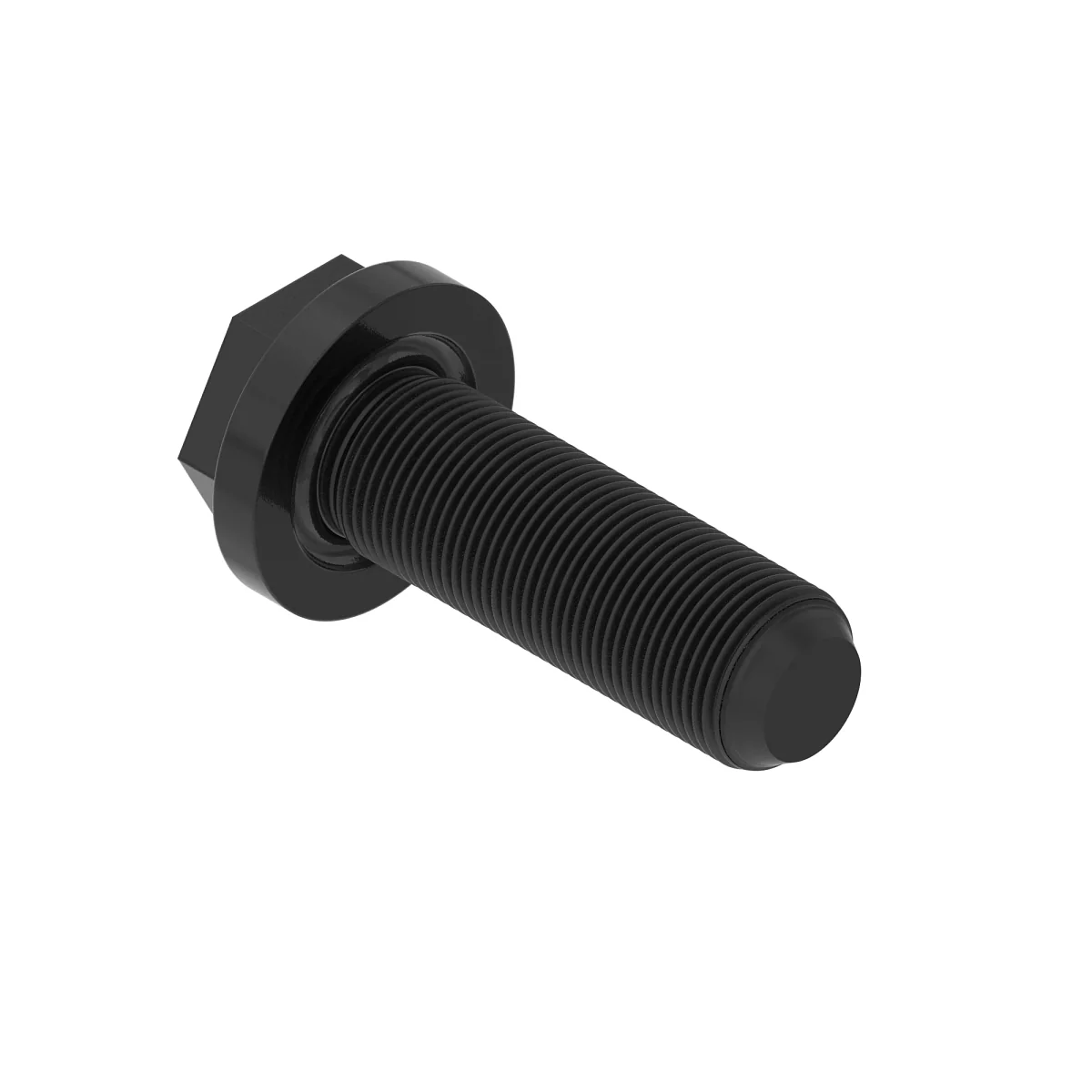

• Title: John Deere Hexagonal Head Flanged Bolt, 9.525 X 31.75 mm (3/8" X 1-1/4") - M143695
• Type: Hex head flange bolt; externally threaded fastener for through-hole assembly
• Thread diameter: 3/8" (9.525 mm); Thread format: UNC (3/8-16)
• Length: 1-1/4" (31.75 mm)
• Head style: Hexagonal with integral flange
• Part number: M143695

Compatibility

• Compatible with standard 3/8-16 UNC nuts and holes sized for 3/8" bolts.
• Suitable for John Deere equipment and other machinery that use 3/8-16 flange bolts in structural or mounting applications.
• Ensure hole clearance and nut availability; verify that engagement length meets the required clamping force for the specific assembly.
