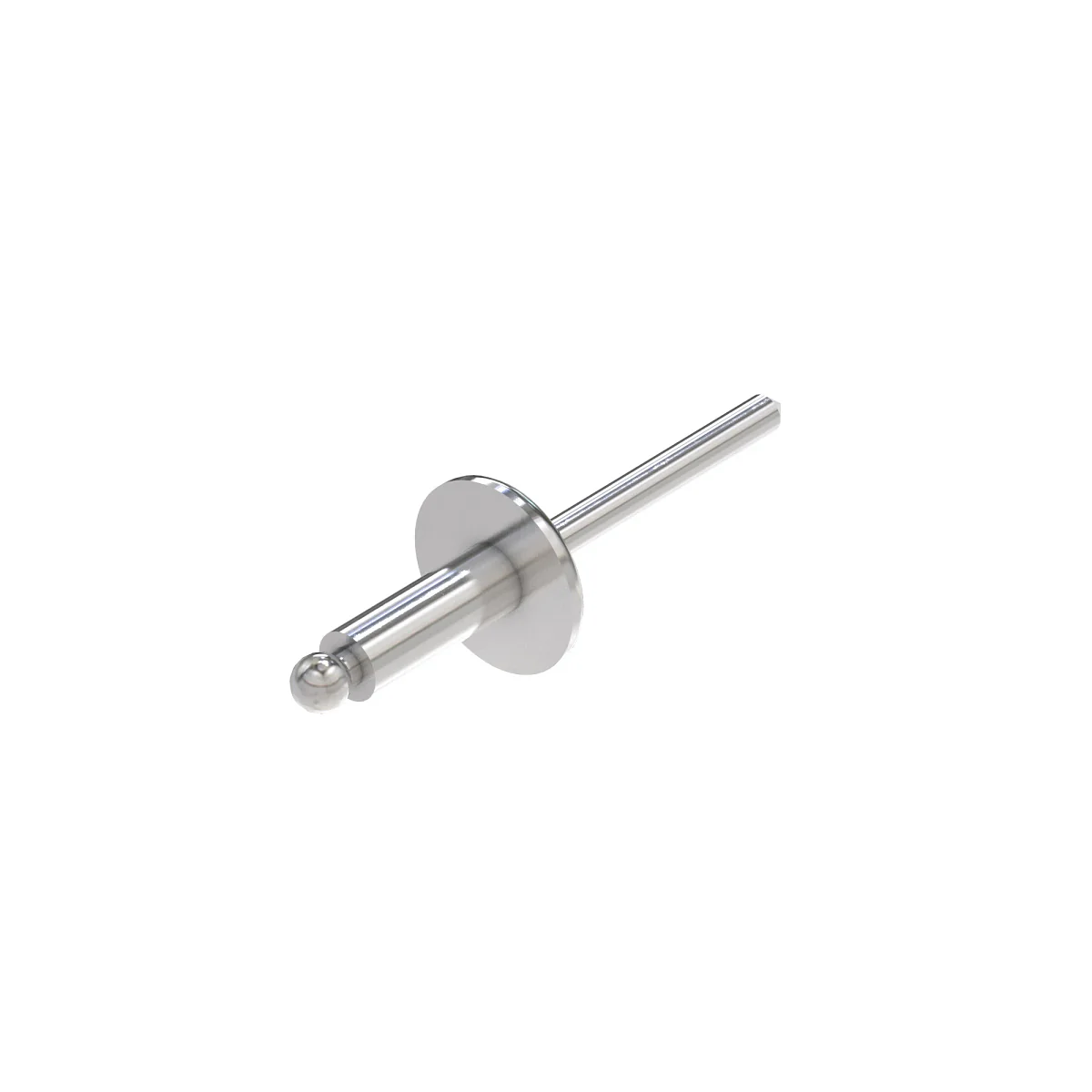

John Deere Rivet - HXE169294
Technical specification documentation for John Deere HXE169294 Dome Head Blind Rivet.
Key Features
- Dome Head Blind Rivet design enabling fastening from one side, ideal for assemblies with limited access.
- High-Strength fastening suitable for securing panels, guards, and structural components in demanding equipment.
- Stainless steel body and mandrel provide excellent corrosion resistance and long service life in outdoor environments.
- Large dome head (16.64 mm) distributes clamping load to improve fastening stability across surfaces.
- Reliable stainless steel mandrel system ensures consistent installation and dependable clamping performance.
- OEM precision component manufactured to John Deere specifications for correct fit and reliable performance.
- Dimensions: Length 24 mm (0.94 in), Head Diameter 16.64 mm (0.66 in), Mandrel Diameter 3.66 mm (0.14 in).
- Application-focused design for securing machine panels and structural assemblies in John Deere harvesting equipment.
Product Details
- Product Type: Dome Head Blind Rivet
- Brand: John Deere
- Part Number: HXE169294
- Material: Stainless steel body and mandrel
- Length: 24 mm (0.94 in)
- Head Diameter: 16.64 mm (0.66 in)
- Mandrel Diameter: 3.66 mm (0.14 in)
- Weight: Approx. 0.005 kg
- Application: Blind rivet designed to provide secure fastening for machine panels and structural assemblies
Compatibility
- Used across John Deere harvesting equipment and headers, including:
- Combine Harvesters: 8100, 8200, 8300, 8400, 8500, 8600, 9500, 9600, 9700, STS series (STS97, STS70, STS70), S-series combines (S660, S670, S680, S685, S690, S760, S770, S780, S785, S790), T-series combines (T550, T560, T660, T670), W-series combines (W540, W550, W650, W660)
- Draper & Flex Headers: 630FD, 635FD, 640FD, 645FD, 730FD, 735FD, 740FD, 745FD, HD Series Headers (HD35F, HD35R, HD35X, HD40F, HD40R, HD40X, HD45F, HD45R, HD45X, HD50F, HD50R)
- Compatibility may vary depending on machine configuration, header type, and serial number. Always confirm with your equipment’s parts catalogue before ordering.
$1.12
John Deere Rivet - HXE169294—
$1.12
